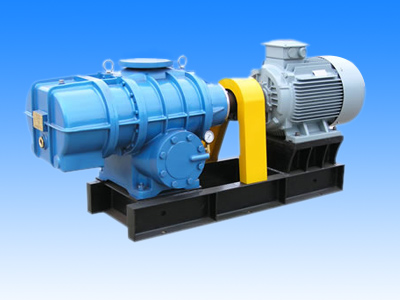

3L52WD、3L53WD型羅茨鼓風機
產品詳細介紹
|
風機型號 |
轉速n r/min |
升壓 Δp |
進口流量Q m3/min |
軸功率Kw |
配套電機 |
噪音dB(A) |
整機重Kg |
||
|
Kpa |
mmH2O |
型號 |
功率Kw |
||||||
|
3L52WD |
980 |
9.8 |
1000 |
22.2 |
6.4 |
Y160M－6 |
7.5 |
76.5 |
1030 |
|
19.6 |
2000 |
21.4 |
9.9 |
Y180L－6 |
15 |
78.9 |
1100 |
||
|
29.4 |
3000 |
20.8 |
13.4 |
Y180L－6 |
15 |
79.2 |
1100 |
||
|
39.2 |
4000 |
20.3 |
17.1 |
Y200L2－6 |
22 |
83.5 |
1155 |
||
|
49 |
5000 |
19.8 |
20.8 |
Y225M－6 |
30 |
85.1 |
1235 |
||
|
58.8 |
6000 |
19.3 |
25.4 |
Y225M－6 |
30 |
85.1 |
1235 |
||
|
68.6 |
7000 |
18.9 |
29.9 |
Y250M－6 |
37 |
85.2 |
1295 |
||
|
78.4 |
80000 |
18.5 |
35.1 |
Y280S－6 |
45 |
85.3 |
1470 |
||
|
風機型號 |
轉速n r/min |
升壓 Δp |
進口流量Q m3/min |
軸功率Kw |
配套電機 |
噪音dB(A) |
整機重Kg |
||
|
Kpa |
mmH2O |
型號 |
功率Kw |
||||||
|
3L52WD |
1450 |
9.8 |
1000 |
34.7 |
10.1 |
Y160M-4 |
11 |
81.8 |
1150 |
|
19.6 |
2000 |
33.9 |
16.2 |
Y180M-4 |
18.5 |
82.8 |
1200 |
||
|
29.4 |
3000 |
33.2 |
22.4 |
Y200L-4 |
30 |
85.36 |
1220 |
||
|
39.2 |
4000 |
32.8 |
28.6 |
Y225S-4 |
37 |
86.2 |
1280 |
||
|
49 |
5000 |
32.3 |
34.9 |
Y225S-4 |
37 |
87.9 |
1280 |
||
|
58.8 |
6000 |
31.8 |
41.3 |
Y225M-4 |
45 |
87.8 |
1340 |
||
|
68.6 |
7000 |
31.3 |
47.7 |
Y250M-4 |
55 |
87.9 |
1450 |
||
|
78.4 |
8000 |
31.0 |
54.1 |
Y280S-4 |
75 |
88.5 |
1580 |
||
|
風機型號 |
轉速n r/min |
升壓 Δp |
進口流量Q m3/min |
軸功率Kw |
配套電機 |
噪音dB(A) |
整機重Kg |
||
|
Kpa |
mmH2O |
型號 |
功率Kw |
||||||
|
3L53WD |
980 |
9.8 |
1000 |
28.7 |
8.2 |
Y160L-6 |
11 |
74.6 |
1117 |
|
19.6 |
2000 |
27.7 |
12.6 |
Y180L-6 |
15 |
76.7 |
1170 |
||
|
29.4 |
3000 |
26.9 |
17 |
Y200L1-6 |
18.5 |
79.7 |
1190 |
||
|
39.2 |
4000 |
26.3 |
21.7 |
Y225M-6 |
30 |
81.8 |
1270 |
||
|
49 |
5000 |
25.7 |
26.4 |
Y225M-6 |
30 |
83.9 |
1270 |
||
|
58.8 |
6000 |
25.1 |
32.2 |
Y250M-6 |
37 |
84.1 |
1470 |
||
|
68.6 |
7000 |
24.5 |
38 |
Y280S-6 |
45 |
84.2 |
1646 |
||
|
78.4 |
8000 |
24.1 |
44.6 |
Y280M-6 |
55 |
84.4 |
1666 |
||
|
風機型號 |
轉速n r/min |
升壓 Δp |
進口流量Q m3/min |
軸功率Kw |
配套電機 |
噪音dB(A) |
整機重Kg |
||
|
Kpa |
mmH2O |
型號 |
功率Kw |
||||||
|
3L53WD |
1450 |
9.8 |
1000 |
44.6 |
12.1 |
Y160L-4 |
15 |
80.6 |
1215 |
|
19.6 |
2000 |
43.6 |
20.0 |
Y180L-4 |
22 |
76.9 |
1246 |
||
|
29.4 |
3000 |
42.8 |
27.8 |
Y200L-4 |
30 |
76.9 |
1300 |
||
|
39.2 |
4000 |
42.2 |
35.6 |
Y225M-4 |
45 |
88.1 |
1400 |
||
|
49 |
5000 |
41.6 |
43.4 |
Y250M-4 |
55 |
88.2 |
1469 |
||
|
58.8 |
6000 |
41.0 |
51.4 |
Y280S-4 |
75 |
88.3 |
1606 |
||
|
68.6 |
7000 |
40.5 |
59.5 |
Y280S-4 |
75 |
88.3 |
1606 |
||
|
78.4 |
8000 |
40.0 |
67.7 |
Y280S-4 |
75 |
88.5 |
1606 |
||
